Mini USB Type B Female Socket Right Angle DIP 5pcs uxcell

Description

Product Overview

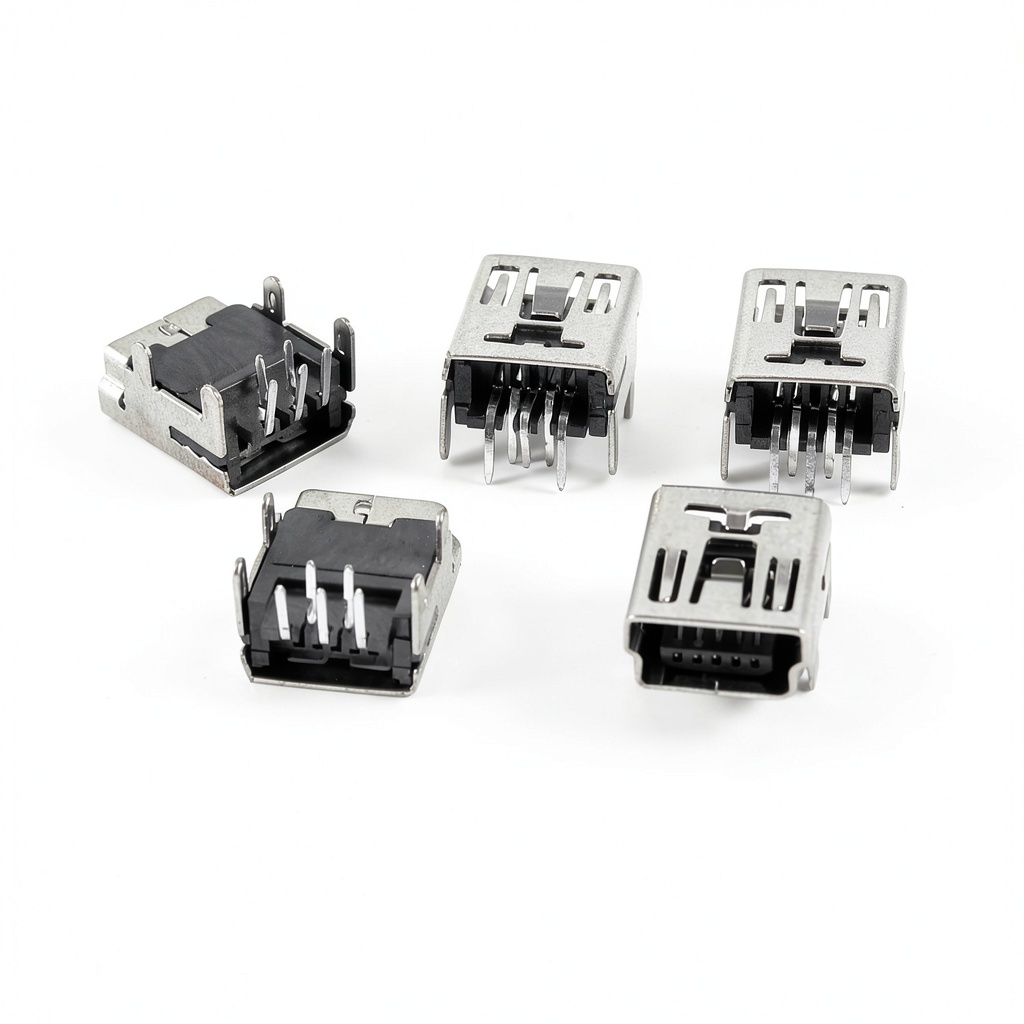

The uxcell Mini USB Type B Female Socket is engineered to meet the demanding needs of modern electronics assembly, offering a right-angle DIP (Dual In-line Package) configuration that maximizes board real estate while maintaining robust electrical performance. Each connector is fabricated from a combination of high‑grade plastic housing and precision‑molded metal contacts, delivering a balance of durability, conductivity, and resistance to wear. The socket measures 9 × 8 × 4 mm (L × W × H), a compact footprint that fits comfortably into tight enclosures, and the pin spacing of 1.5 mm aligns with standard Mini USB specifications for seamless integration with a wide range of devices. The package includes five individual sockets, allowing designers and technicians to stock essential components for multiple builds or to replace faulty units without delay.

Key construction details include a silver‑tone metal alloy for the contact pins, which ensures low resistance and reliable signal transmission, while the surrounding plastic shell provides insulation and protection against short circuits. The right‑angle design reduces cable strain and facilitates easier routing in confined spaces, making it an ideal choice for handheld gadgets, portable chargers, and compact consumer electronics. The connectors are rated for up to 1 A of current, supporting typical USB power and data requirements without overheating. With a robust mechanical latch, the socket secures the mating plug firmly, reducing the risk of accidental disconnection during movement or vibration.

Usage

Designed for versatility, the Mini USB Type B Female Socket finds application across a broad spectrum of projects. Hobbyists building Arduino or Raspberry Pi accessories can rely on the socket to provide a clean, professional interface for charging modules, sensor arrays, and communication peripherals. In the repair market, technicians use these sockets to replace worn or damaged connectors on smartphones, tablets, digital cameras, and other portable devices that employ the Mini USB standard. The right‑angle configuration is especially beneficial in scenarios where space is limited, such as inside wearable devices, compact drones, and miniature medical equipment.

Beyond consumer electronics, the socket is suitable for industrial and scientific instrumentation where reliable data transfer and power delivery are critical. Engineers integrating the socket into prototype boards can take advantage of its easy soldering process; the DIP layout aligns with standard through‑hole soldering techniques, allowing for quick assembly on breadboards or perfboards. The five‑piece kit ensures that multiple prototypes or production runs can be supported without the need for frequent re‑ordering, streamlining inventory management and reducing lead times.

Why Choose Us

Choosing the uxcell Mini USB Type B Female Socket means selecting a component that combines quality, reliability, and value. uxcell is a recognized brand in the electronics component market, known for rigorous quality control and adherence to international standards. Each socket undergoes comprehensive testing for electrical continuity, mechanical strength, and dimensional accuracy, guaranteeing that the product meets or exceeds industry specifications.

Our commitment to customer satisfaction extends beyond the product itself. We provide responsive technical support, detailed datasheets, and clear installation guidelines to help users achieve optimal performance. In the unlikely event of a defect, our after‑sales service offers prompt replacement or refund, reinforcing confidence in every purchase. By offering the socket in a convenient five‑piece package, we reduce the total cost per unit while ensuring that you have sufficient stock for both development and production phases.

Key Features

• Compact right‑angle DIP design saves board space and simplifies cable routing.
• Durable plastic housing with silver‑tone metal contacts ensures long‑term reliability.
• Standard 1.5 mm pin spacing compatible with all Mini USB Type B plugs.
• Five‑piece kit provides ample stock for multiple projects or replacements.
• Responsive customer support and hassle‑free warranty for peace of mind.

FAQ

What devices are compatible with this Mini USB Type B Female socket?

The socket conforms to the Mini USB Type B standard, making it compatible with any device that uses a Mini USB connector, including smartphones, cameras, GPS units, and many hobbyist development boards.

Can this socket handle both data and power transmission?

Yes, the socket is rated for up to 1 A of current and supports full‑speed USB data rates, allowing it to serve both charging and communication functions.

Is soldering required for installation?

Installation uses a standard through‑hole soldering process. The DIP layout aligns with common PCB designs, and the pins are sized for easy insertion and soldering with typical hobbyist tools.

What is the warranty period for this product?

uxcell offers a one‑year limited warranty covering manufacturing defects. If a defect is identified, contact our support team for a replacement or refund.

How does the right‑angle design benefit my project?

The right‑angle orientation reduces strain on the cable, improves durability in mobile applications, and frees up space on the PCB, which is especially valuable in compact or wearable devices.
