Description
Product Overview

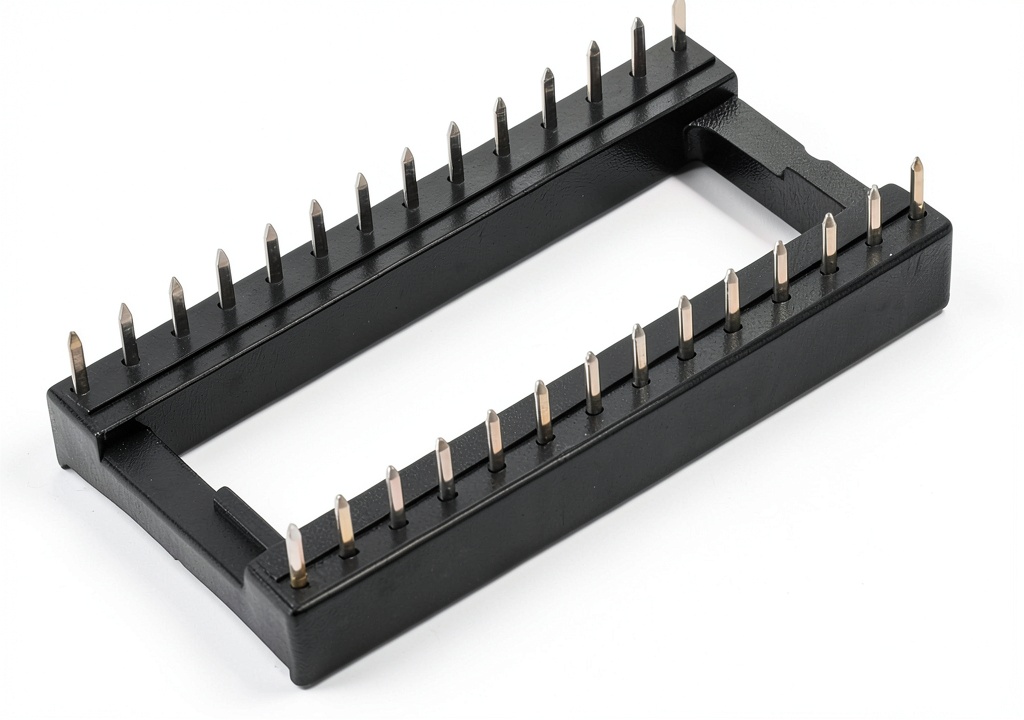

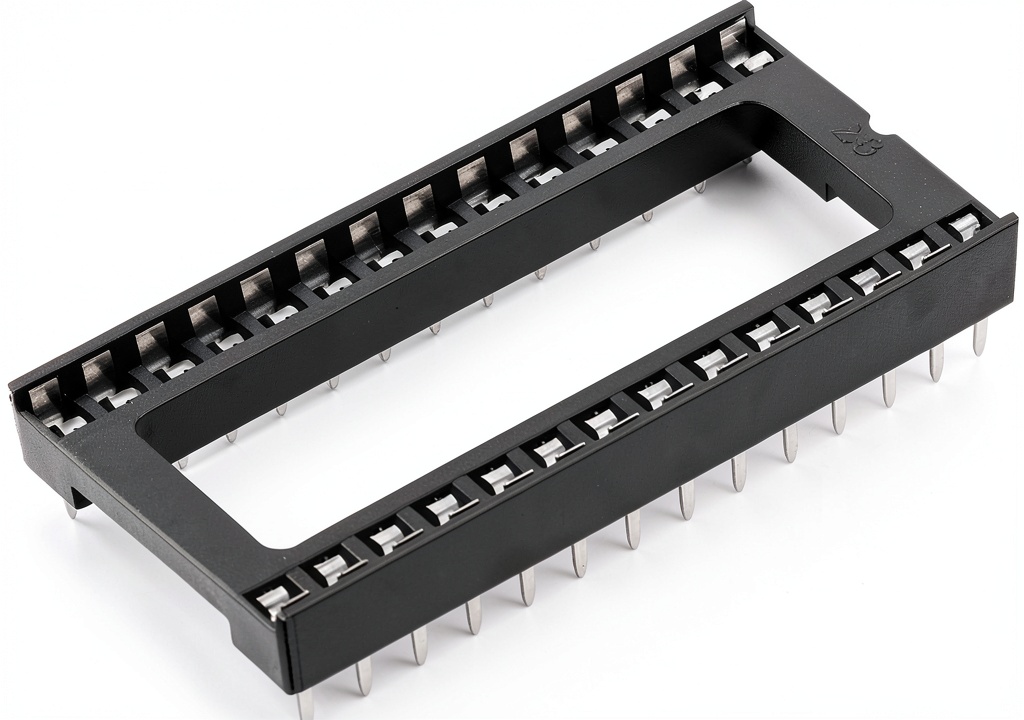

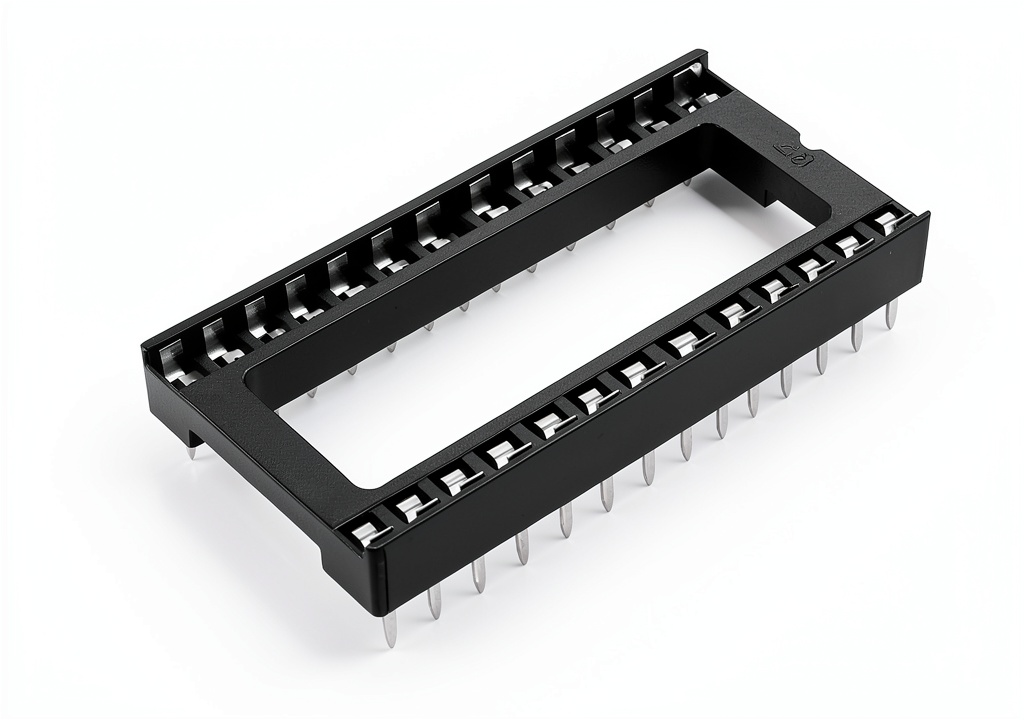

The uxcell 25‑piece DIP IC socket adaptor is engineered for precision and durability, offering a standard 2.54mm (0.1″) pitch that aligns perfectly with most dual‑in‑line package (DIP) components. Each adaptor features a 28‑pin configuration arranged in a dual‑row layout, providing ample connectivity for a wide range of integrated circuits. Constructed from high‑quality metal contacts housed within a robust plastic frame, the sockets deliver excellent electrical conductivity while resisting wear from repeated soldering and desoldering cycles. The compact dimensions—approximately 5.51 x 3.94 x 1.18 inches—allow easy integration into tight PCB layouts, and the lightweight design (1.44 oz) ensures minimal impact on overall board mass. Designed for both hobbyist and professional environments, these adapters simplify prototyping, testing, and repair processes, reducing the risk of damaging expensive ICs.
Usage
These DIP socket adapters are ideal for a variety of applications, from educational labs and maker‑space projects to industrial prototyping and low‑volume production runs. Engineers can use them to quickly mount and replace ICs during circuit debugging, while educators can demonstrate chip functionality without permanent solder joints. The adapters perform reliably in environments that demand vibration resistance and thermal stability, making them suitable for automotive electronics, aerospace testing rigs, and consumer device development. Whether you are assembling a development board, repairing a malfunctioning device, or building a custom controller, the uxcell socket provides a secure, reusable interface that streamlines the workflow and protects valuable components.
Why Choose Us
Choosing the uxcell DIP socket adaptor means selecting a product backed by rigorous quality control and a reputation for reliability. Each batch undergoes thorough testing to ensure consistent pin alignment, contact resistance, and mechanical strength. The combination of metal and plastic materials offers a balance of conductivity and insulation, preventing short circuits while maintaining a firm grip on the IC leads. Our adapters are manufactured in facilities that adhere to international standards, guaranteeing that every unit meets the specifications required for demanding electronic projects. Additionally, uxcell provides responsive customer support and a clear return policy, giving you confidence that any issues will be addressed promptly.
Key Features
- Precise 2.54mm pitch ensures perfect alignment with standard DIP components.
- Durable metal contacts paired with a sturdy plastic housing resist wear from repeated soldering.
- Dual‑row 28‑pin layout supports a wide range of integrated circuits for versatile use.
- Compact size fits into tight PCB designs while maintaining reliable electrical performance.
- Responsive uxcell customer support provides assistance and hassle‑free returns.
FAQ
Can the socket be used for both through‑hole and surface‑mount ICs?
The socket is specifically designed for through‑hole DIP packages. While it can accommodate some surface‑mount devices with compatible lead configurations, it is not intended for standard SMD components.
How many times can the socket be soldered and desoldered before it fails?
Thanks to its high‑quality metal contacts and heat‑resistant plastic housing, the socket can endure dozens of solder‑desolder cycles without significant degradation, making it ideal for prototyping and repair work.
Is the socket compatible with 5 V and 3.3 V logic levels?
Yes, the socket’s material and design support a wide voltage range, including common 5 V and 3.3 V logic levels used in most digital circuits.
What is the recommended soldering temperature for optimal results?
We recommend using a soldering iron set between 350 °C and 380 °C. This range provides a good balance between quick solder flow and protection of the plastic housing.
Do you offer bulk pricing for larger orders?
Yes, uxcell provides volume discounts for bulk purchases. Please contact our sales team for a customized quote based on your required quantity.
